Data Form Components

The main parts of an auto-generated form.

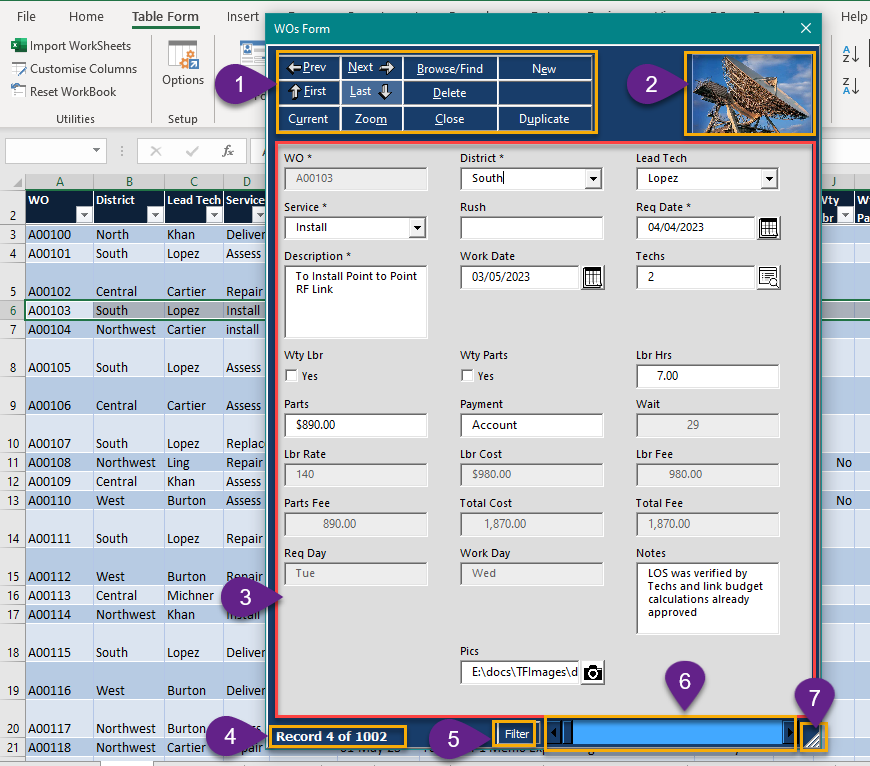

Overall Layout – Data Form Main Sections

Picture 282



  1. The command button group is a button menu that will allow the user to navigate, search and manipulate the database table.
  2. The Image thumbnail shows the default logo or active row picture (Windows OS only)
  3. The main data frame contains all the data form controls such as text boxes
  4. The record counter
  5. The Launch Filter Form Button
  6. The data scrollbar
  7. The form re-sizer
